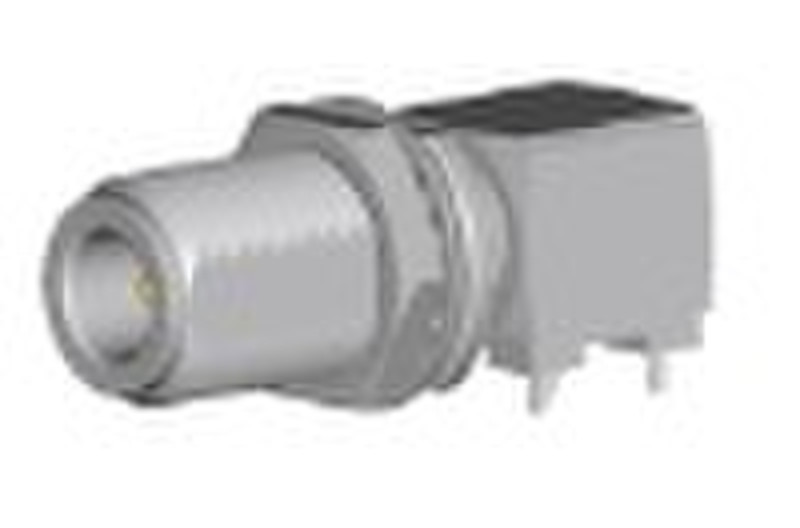

N Type R/A Bulkhead Socket connector for PCB Solde
Sandra Wang
Contact person
Basic Information
| Place of Origin | Sichuan China (Mainland) |
|---|---|
| Brand Name | KTS |
| Model Number | N type |
1.Technical data: Characteristic resistance 50Ω Frequency scope DC11GHz VSWRstraight≤ 1.3,bend≤ 1.5 Current voltage1000V max (virtual value) Contact resistancebetween inner conductors≤2.5 MΩ; between outer conductors ≤1.5 MΩ dielectric withstanding voltage2 500V rms (sea level min) insulation resistance≥ 5000 MΩ temperature scope -65 +165 Vibration MIL -STD-202, Method 213 durability ≥500 2.Material and plating: part nameMaterialPlatingpart namematerialplatingshellBrassnickel/ternary alloycrimp ferrulecopper alloynickel or giltouter conductorBe coppernickel/ternary alloyInsulatorPTFE----PinBrassgilt/silveringwaterproofSilicone rubber----socketBe coppergilt/silvering
Delivery terms and packaging
Packaging Detail: carton Delivery Detail: 30 days
Port: Chendu
Payment term
Telegraphic transfer
-
